Arduino Radar System

Hardware Engineering & Real-Time Visualization

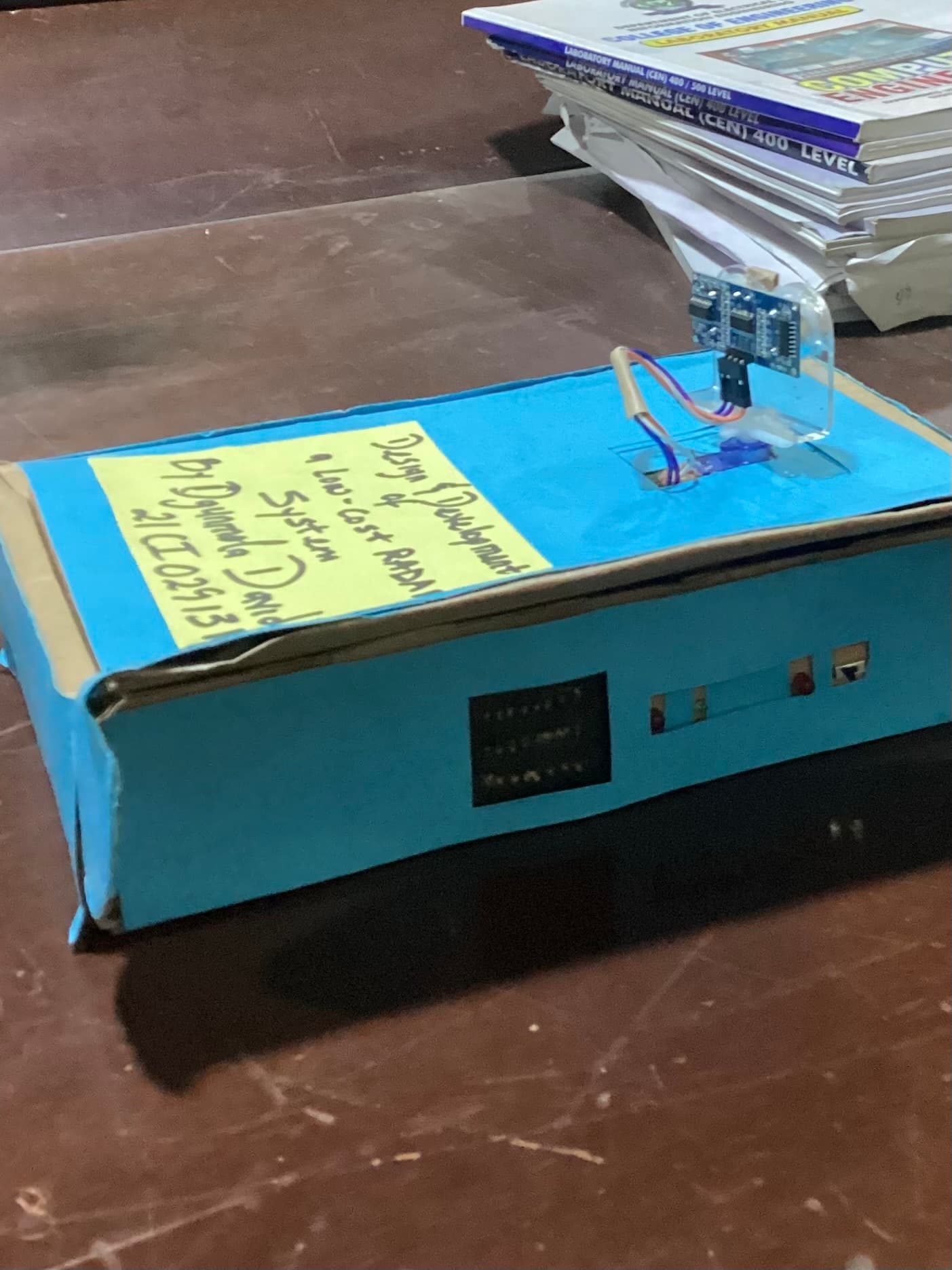

Designed and developed a low-cost, functional mini radar system to explore the integration of hardware sensors with real-time software visualization.

System Architecture

The project combines physical computing with graphical processing:

• Sensing Engine: Utilizes ultrasonic sensors to emit high-frequency sound waves. The system measures the echo return intervals and applies the "time-of-flight" principle to calculate precise object distances.
• Actuation: Driven by a servo motor programmed to sweep the sensor continuously across a 180-degree radius, establishing a broad field of detection.

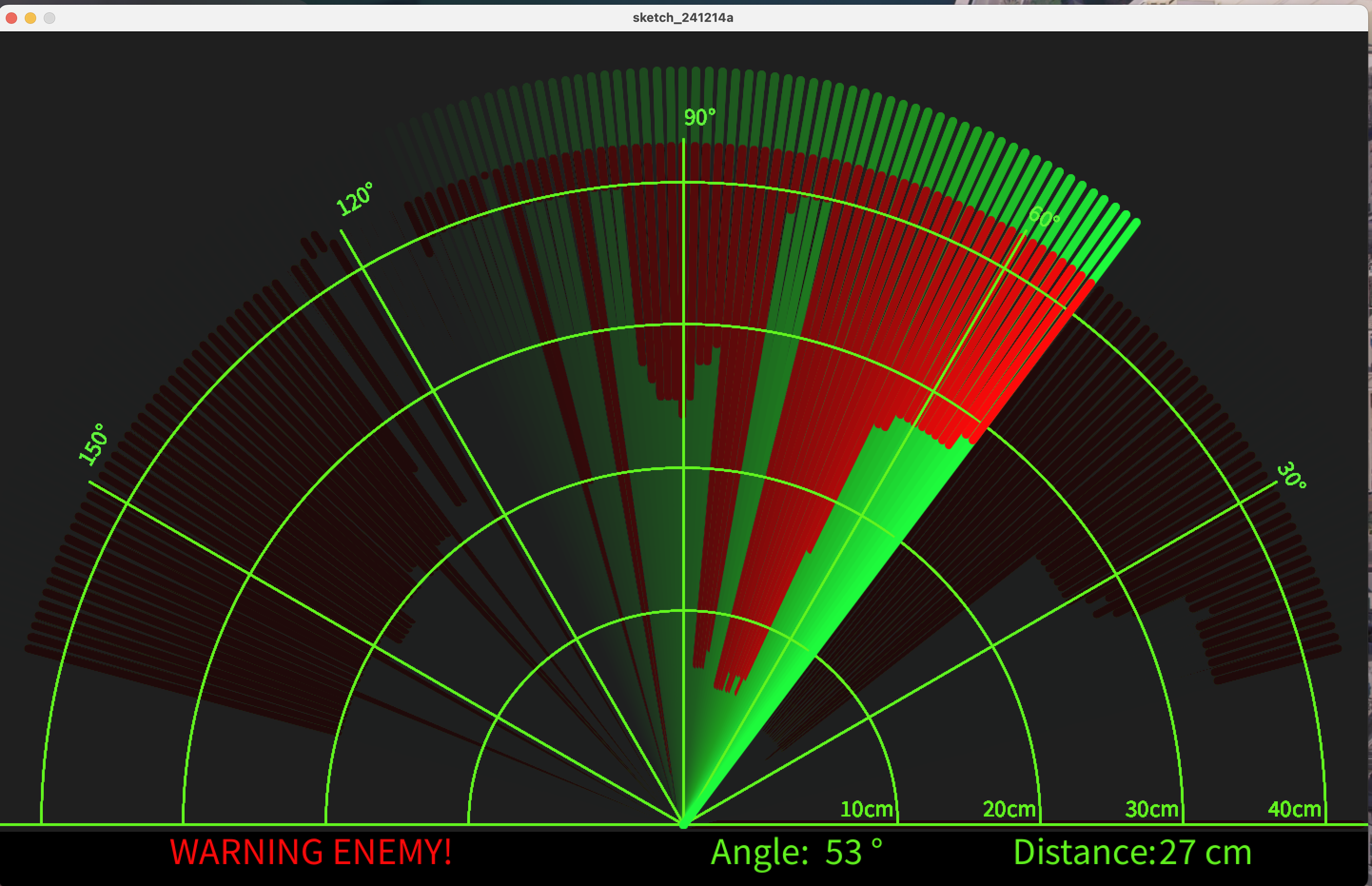

• Data Visualization: Built a real-time graphical user interface (GUI) using Processing. As the Arduino streams serialized spatial data over serial communication, the GUI plots the detection vectors, simulating a traditional radar screen.

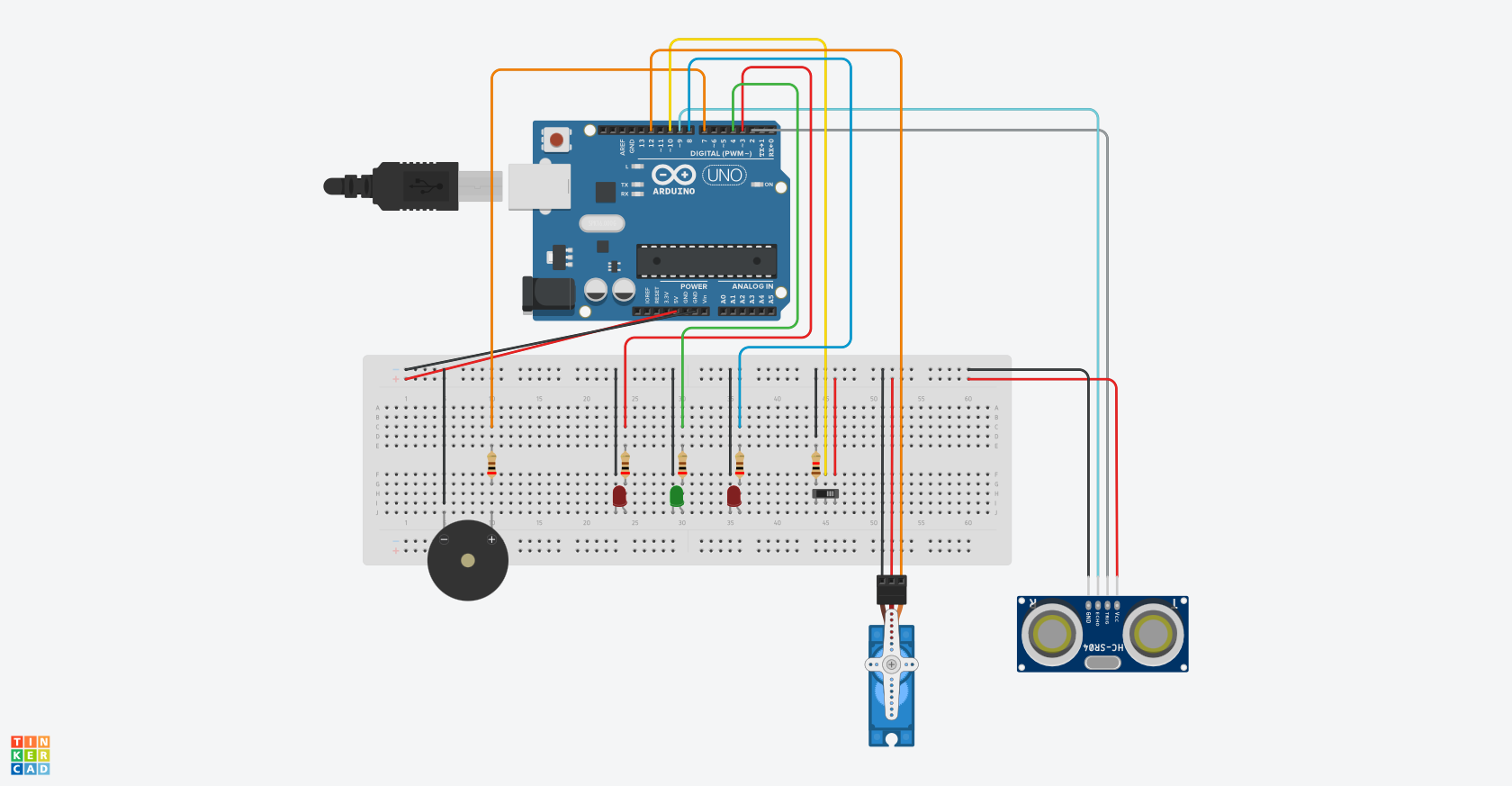

Components

Technical Challenges Overcome

The primary challenges lay in the hardware-software handshake. Early iterations suffered from sensor jitter and serial communication bottlenecks. I resolved these issues by refining the C++ polling frequencies and implementing strict calibration routines to ensure the sweeping mechanism remained perfectly synchronized with the GUI rendering.

The project successfully demonstrates an accessible approach to developing spatial awareness modules for small-to-medium scale robotics.

Future Improvements

Longer range and better accuracy, steadier readings through filtering and calibration, wireless remote monitoring, a more capable controller such as a Raspberry Pi, and a sturdier enclosure and power design.
